Κωδικός προϊόντος:
DELTAREG AA500

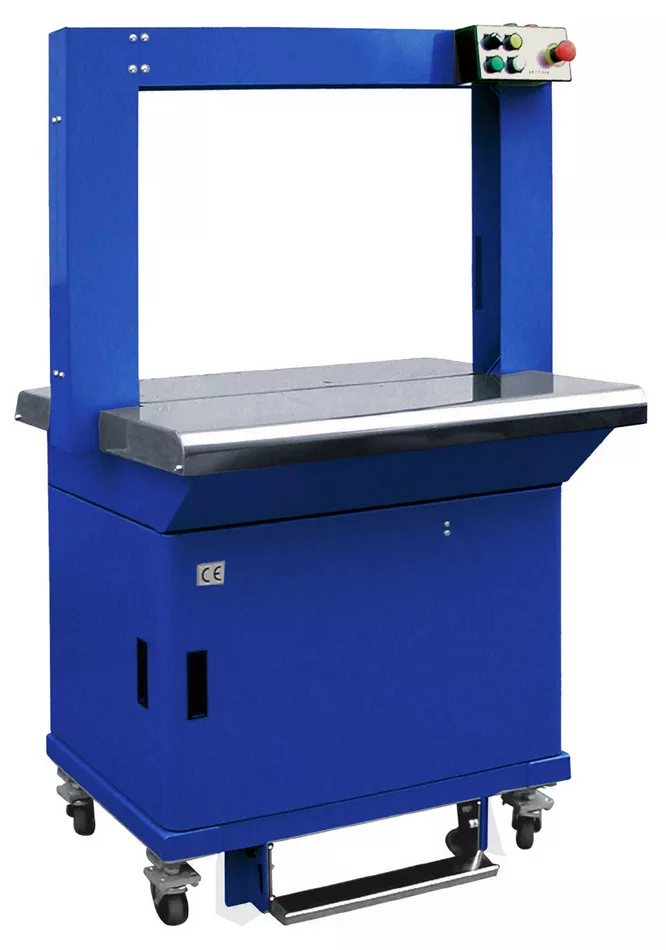

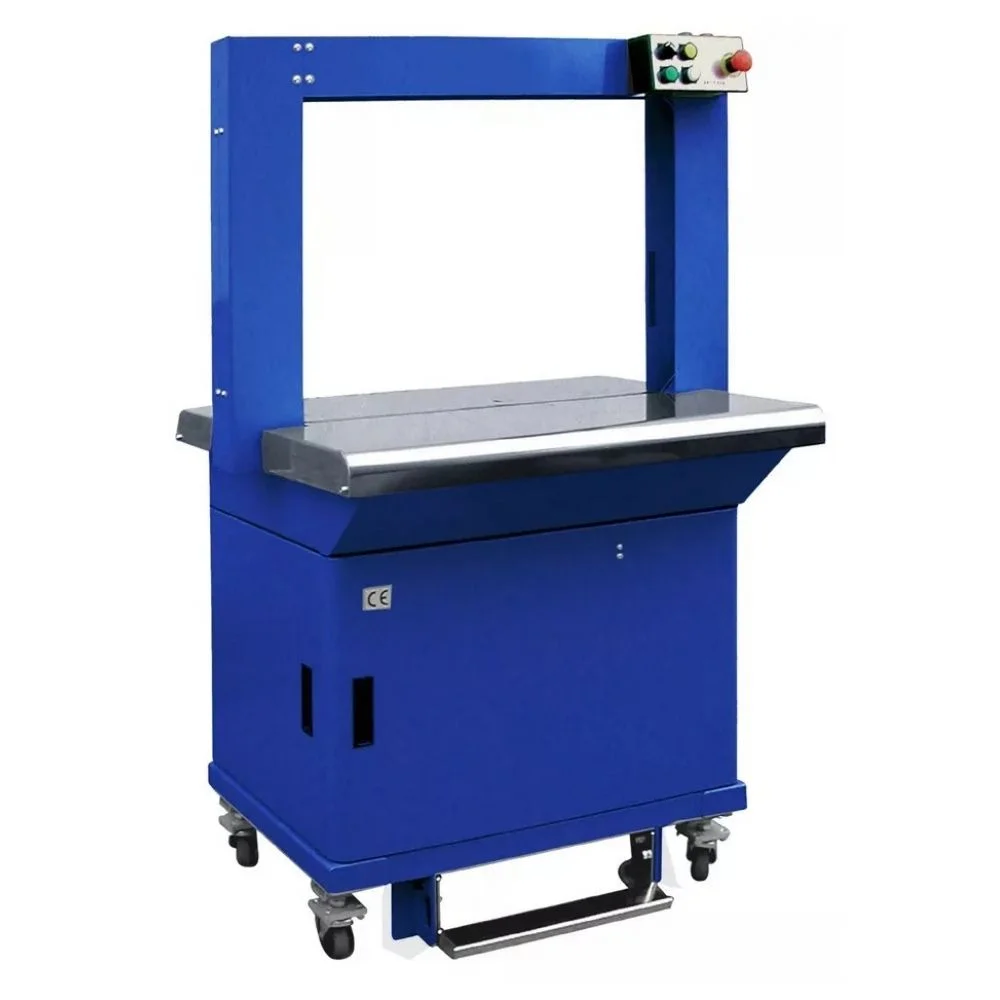

HIGH SPEED AUTOMATIC STRAPPING
High speed automatic strapping arch machine equipped with inclinable steel working-plate to lay the package, with automatic strapping operated by a pedal, button or photo-eye on the working-plate.
Πληροφορίες Μηχανήματος
- Steel standard arch 700 x 500 mm
- Electronic Control Board
- Automatic reset operated by a pedal
- 24V electric control panel
- Control panel located on the operator-side
- Instant sealing through a warmed wire
- External adjustment of strap tension
- Soft adjustment of strap tension on the control panel
- Working-plate height adjustable (850 ÷ 930 mm)
- Automatic roll change and stop when roll is ended
- Machines are on wheels so they may be moved quickly from one task to another
- The machine works with PET and PPL or metallic strap.
Machine made according to CE rules.
SPECIFICATIONS DELTAREG AA500
- Power supply: 230 V – 1 Ph – 50 Hz
- Power required: 0,7 KW
- Overall machine dimensions L x W x H: 940 x 640 x 1470 mm
- Working-plate height: 850 ÷ 930 mm
- Machine weight: 125 kg
- Strap tension: 1,5 ÷ 40 kg
- Strap width: 5 – 9 mm
- Internal roll diameter: 200 – 280 mm
- Minimum product dimensions W x H: 100 x 30 mm
- Output: 50pcs/min
notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
