Κωδικός προϊόντος:
UNIQUE XK EV

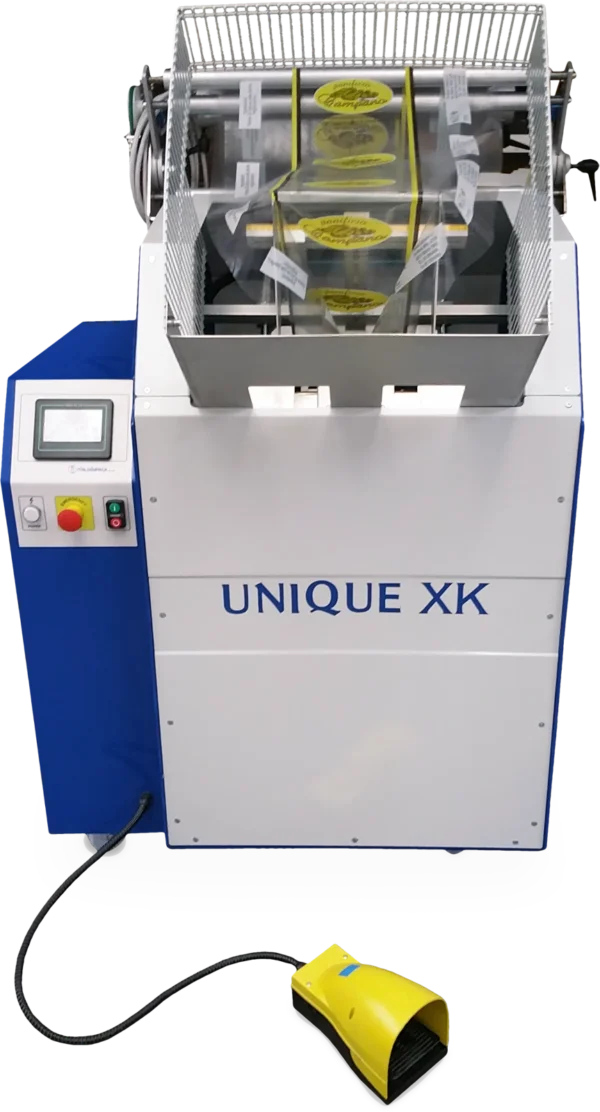

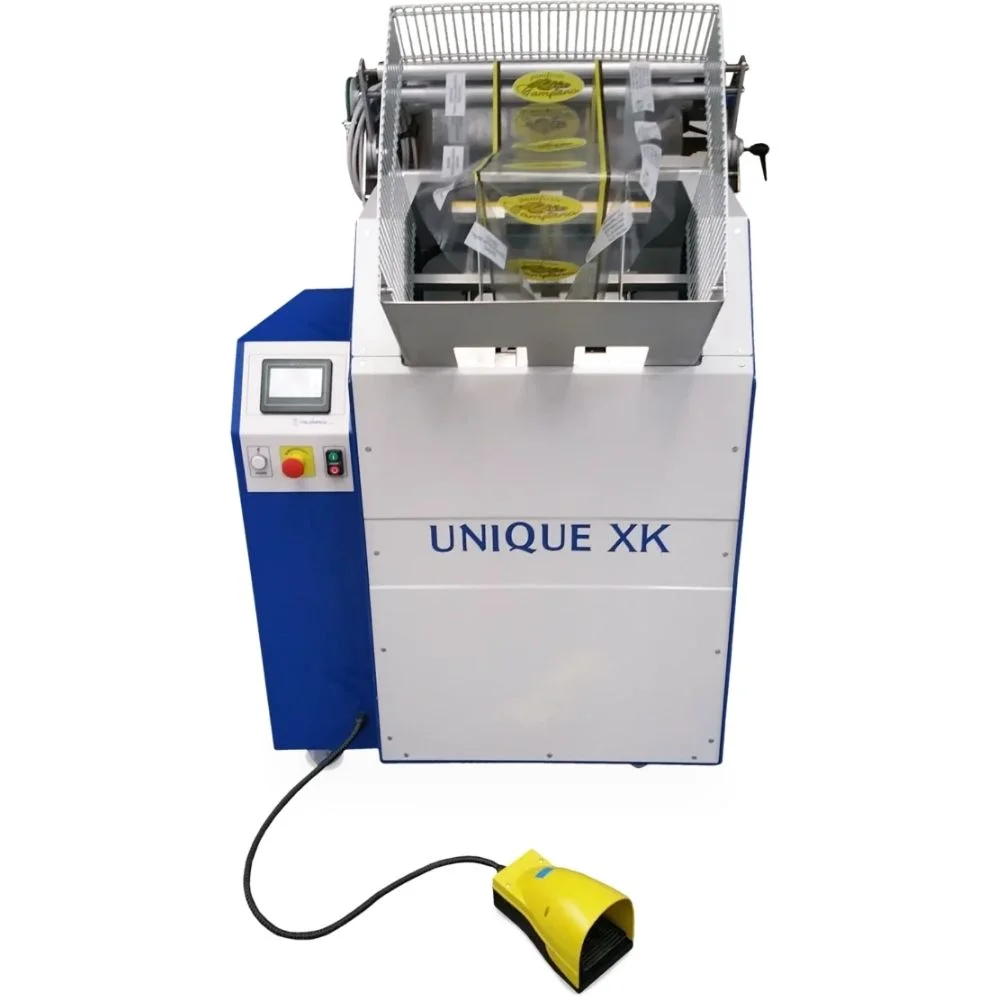

THE NEW SIMPLIFIED AUTOMATIC PACKAGING MACHINE “UNIQUE” IN THE WORLD
UNIQUE XK introduces a new era in wrapping technology and, in comparison to other flow pack machines with similar features, it costs less than half.
The operator does not have to run after the machine working but it is the machine adapting itself to the operator. UNIQUE XK is equipped with an easy touch-screen display designed by R&D ITALDIBIPACK, for a fast setting of different working parameters, controlled and operated through a PLC unit.
Πληροφορίες Μηχανήματος
DESIGN CHARACTERISTICS
- Double pair of sealing wheels.
- Trasversal sealing with “cut and seal” jaws, vertical closure.
- Adjustable conformer to facilitate and expedite format changes.
- Feeding speed adjustable through the PLC.
- Temperature of the “cut and seal” jaws and the sealing wheels electronically controlled by the PLC.
UNIQUE XK EV can be equipped with a large number of optional to extend its applications in an incredible way.
- Stainless steel frame.
- Several feeders to facilitate and speed up the loading of products.
- Thermal transfer printer.
- Photo-eye for registered printed films.
- Crossed reading photo-eye for automatic detection of product’s length, to work and pack sequence of products with different length.
- Further optional are available upon request to satisfy the most different packing needs and necessities.
SPECIFICATIONS – UNIQUE XK EV
- Power supply: 240V – 1ph
- Max power required: 3 kW
- Overall dimensions L x W x H: 750 x 1000 x 1400 mm
- Machine weight: 300 kg
- Min bag dimensions: 10 x 10 x 0 mm
- Max bag dimensions: oo x 300 x 150 mm
- Max roll widht: 700 mm
- Indicative Output: 15/20 pz/min
note: technical characteristics subjected to modifications without
prior notifications.
