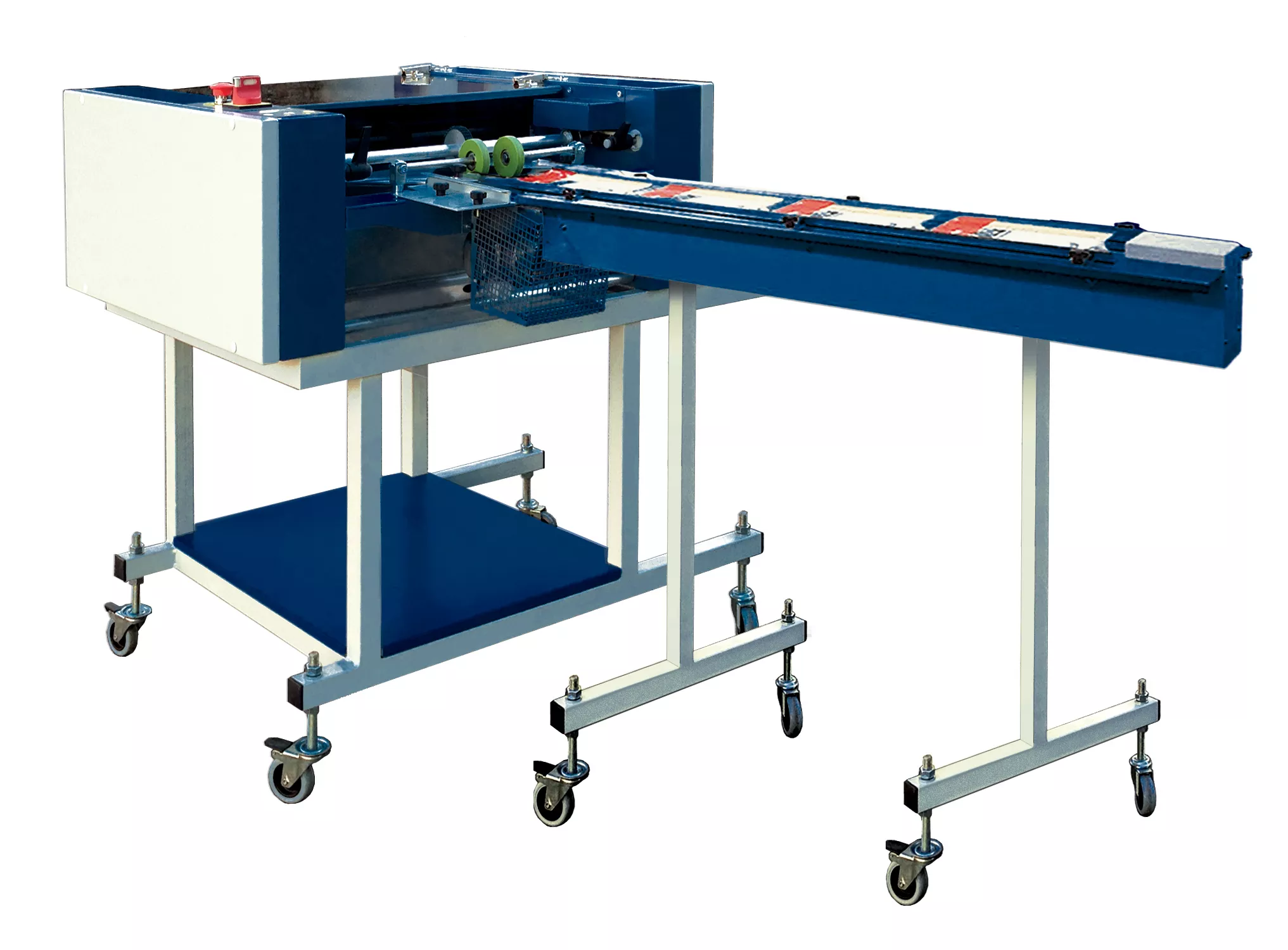

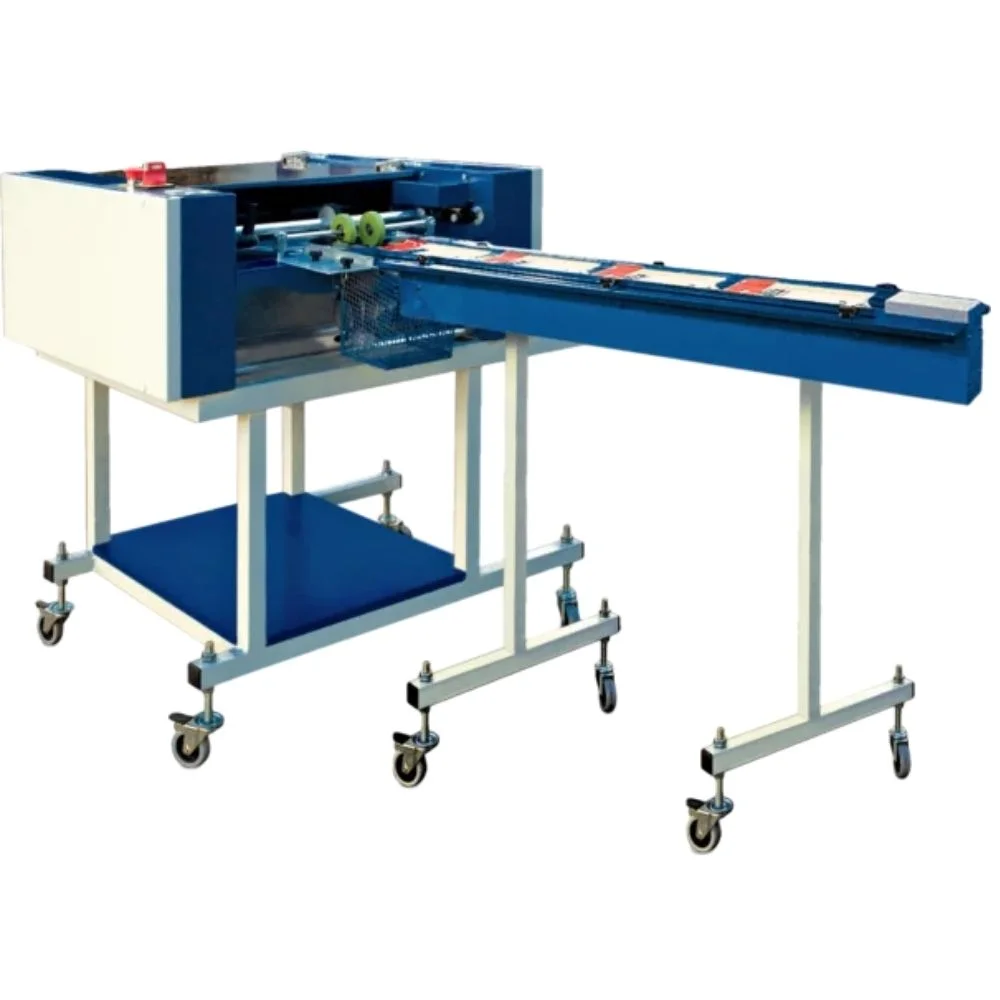

SPEED BAG H
FAST AND UNEXPENSIVE HORIZONTAL BAGGING
Ideal for wrapping and mailing newspapers and magazines, catalogues and wholesale publications, and any commercial printed materials in A4 size in singlepack. Half-automatic, easy to use: the only thing the operator has to do is simply to feed products horizontally onto the infeed conveyor belt that carries them towards the sealing area. Here a special device will “clamp“ product and film together and push them through sealing and cutting operations. A bag is formed around the product by the adjustable width folding plates. The bag is then sealed and cut according to the product length.
Πληροφορίες Μηχανήματος
- Horizontal feeding
- Automatic cycle controlled by PCB
- Display with touch sensitive controls
- Independent sealing-bars; sealing-time and temperature controlled by PCB
- Pneumatic movement, air-compressor inside
- Motorized film-unwinding
- Automatic product ejection
- Synchronous lugged motorized infeed conveyor belt on request
- The machine works with transparent or printed LLDPE (thickness 15 ÷ 40)
Machine made according to CE rules.
SPECIFICATIONS – SPEED BAG H
- Power supply: 230 V – 50/60 Hz – 1 Ph
- Power required: 2 KW
- Overall machine dimensions L x W x H: 2700 x 900 x 350 mm
- Weight: 150 Kg
- Min wrapping size L x W x H: 150 x 105 x 1 mm
- Max wrapping size L x W x H: 297 x 210 x 10 mm
- Film roll width: 500 mm
- Output up to: 2400 pcs/h
Notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
