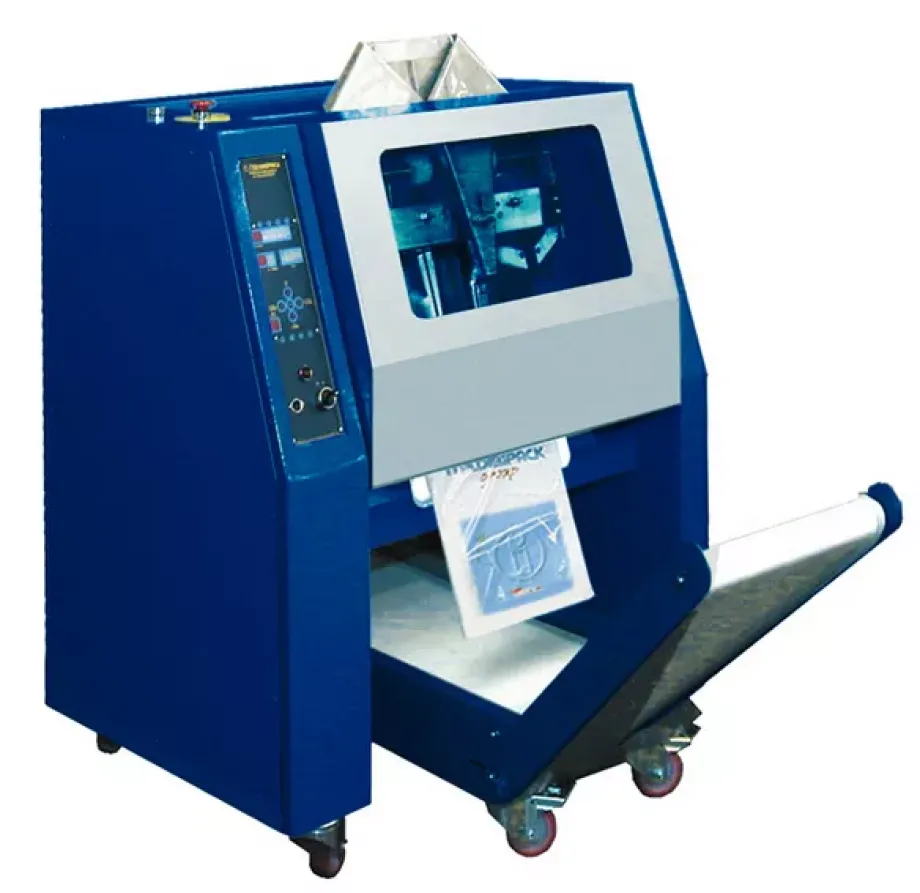

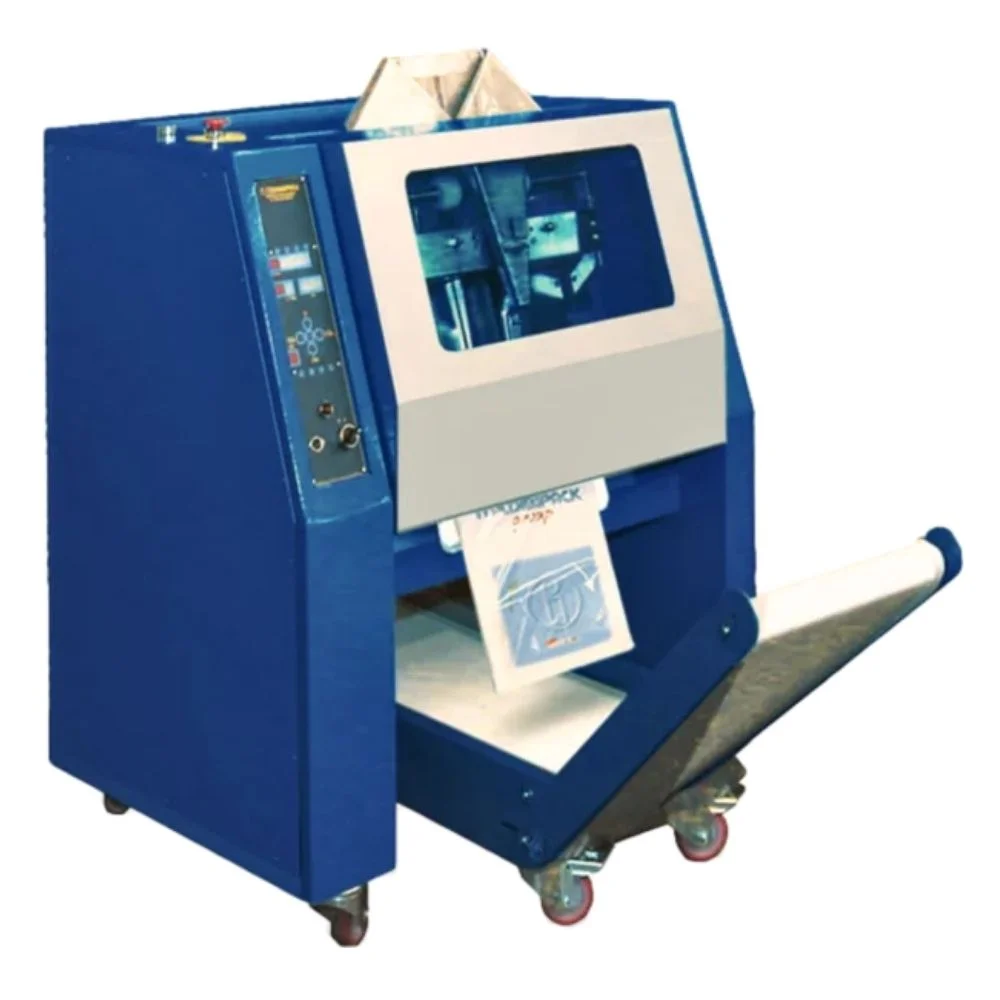

SPEED BAG EV
EASY, PRACTICAL AND UNEXPENSIVE BAGGING WITH SPEEDBAG EV
Ideal for wrapping and mailing newspapers and magazines, catalogues and wholesale publications, manuals and any commercial printed materials, in single or multipack. Half-automatic, easy to use: the only thing the operator has to do is simply to feed products vertically into the metal “throat of a shirt“ in fact the whole machine cycle is fully automatical. The bag width is adjusted accorging the product width through the metal “throat“, a photocell senses the top and the bottom of the product and switches on the film-unwinding device so that a bag is formed around the product. The bag is then sealed and cut accordingto the product length. Compact and really unexpensive machine which is essential for do-it-by-yourself maiing.
Πληροφορίες Μηχανήματος
-
Vertical feeding
-
Two way of working: Manual or Automatic with unit-counter
-
Digital control panel
-
Independent sealing-bars; sealing-time and temperature controlled by PCB
-
Minimum bag dimensions: 50 x 140 mm; thickness 1mm
-
Maximum bag dimensions: up to 350 x 270 mm; thickness 12 mm
-
Motorized film-unwinding
-
Wide table-top for products
-
Motorized output conveyor belt on request
-
The machine works with transparent or printed LLDPE (thickness 15 ÷ 40)
Machine made according to CE rules.
SPECIFICATIONS – SPEED BAG EV
- Power supply: 230V – 50/60 Hz – 1 Ph
- Power required: 1 kW
- Overall machine dimensions L x W x H: 930 x 640 x 1150 mm
- Weight: 100 Kg
- Min. wrapping size L x W x H: 50 x 140 x 1 mm
- Max wrapping size L x W x H: 350 x 270 x 12 mm
- Film roll width: 600 mm
- Output up to: 1200 pcs/h
Notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
